Product Description

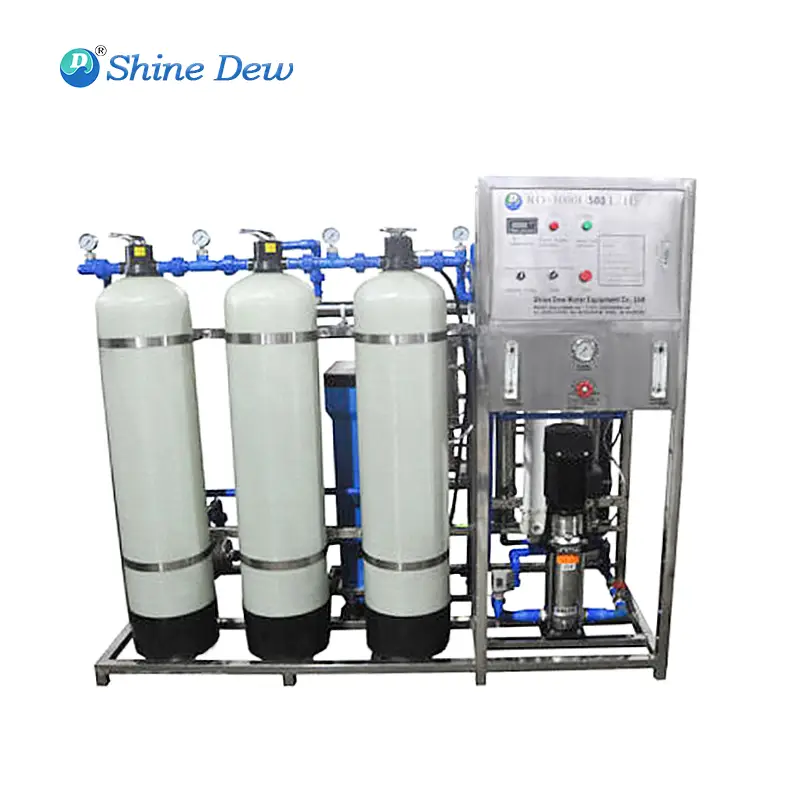

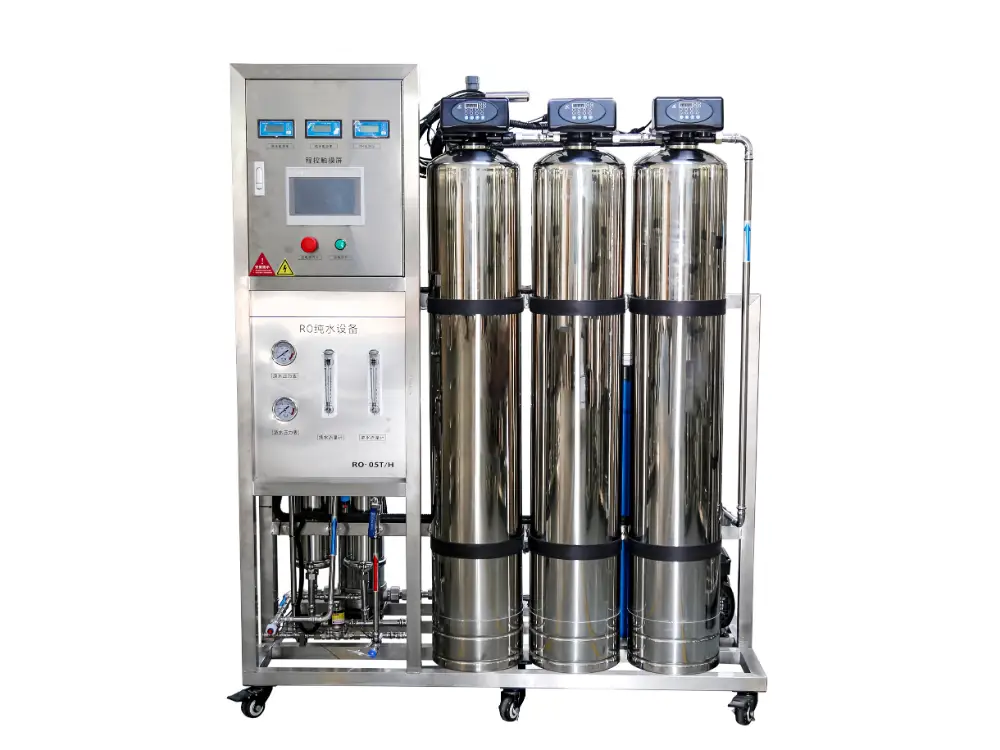

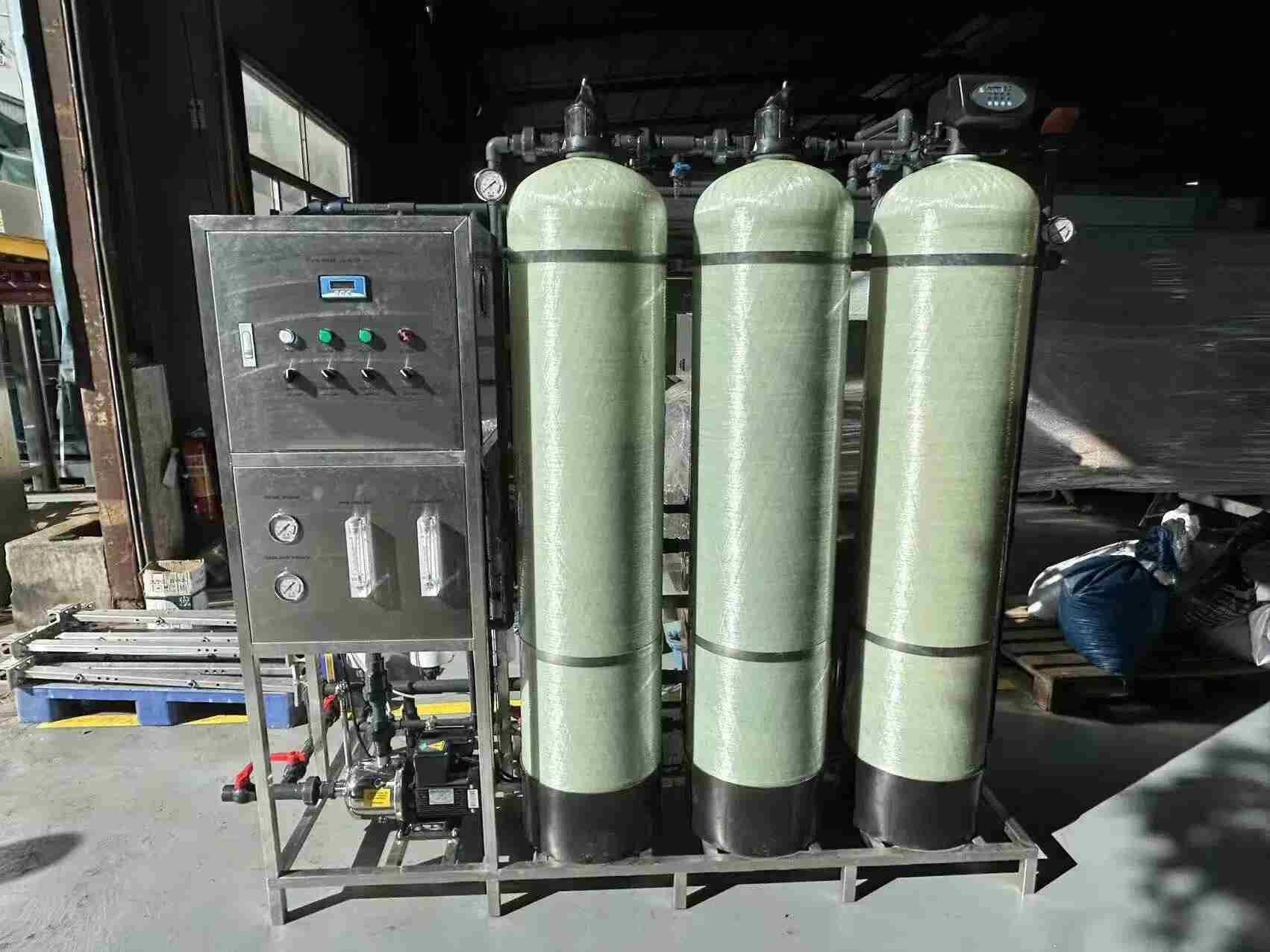

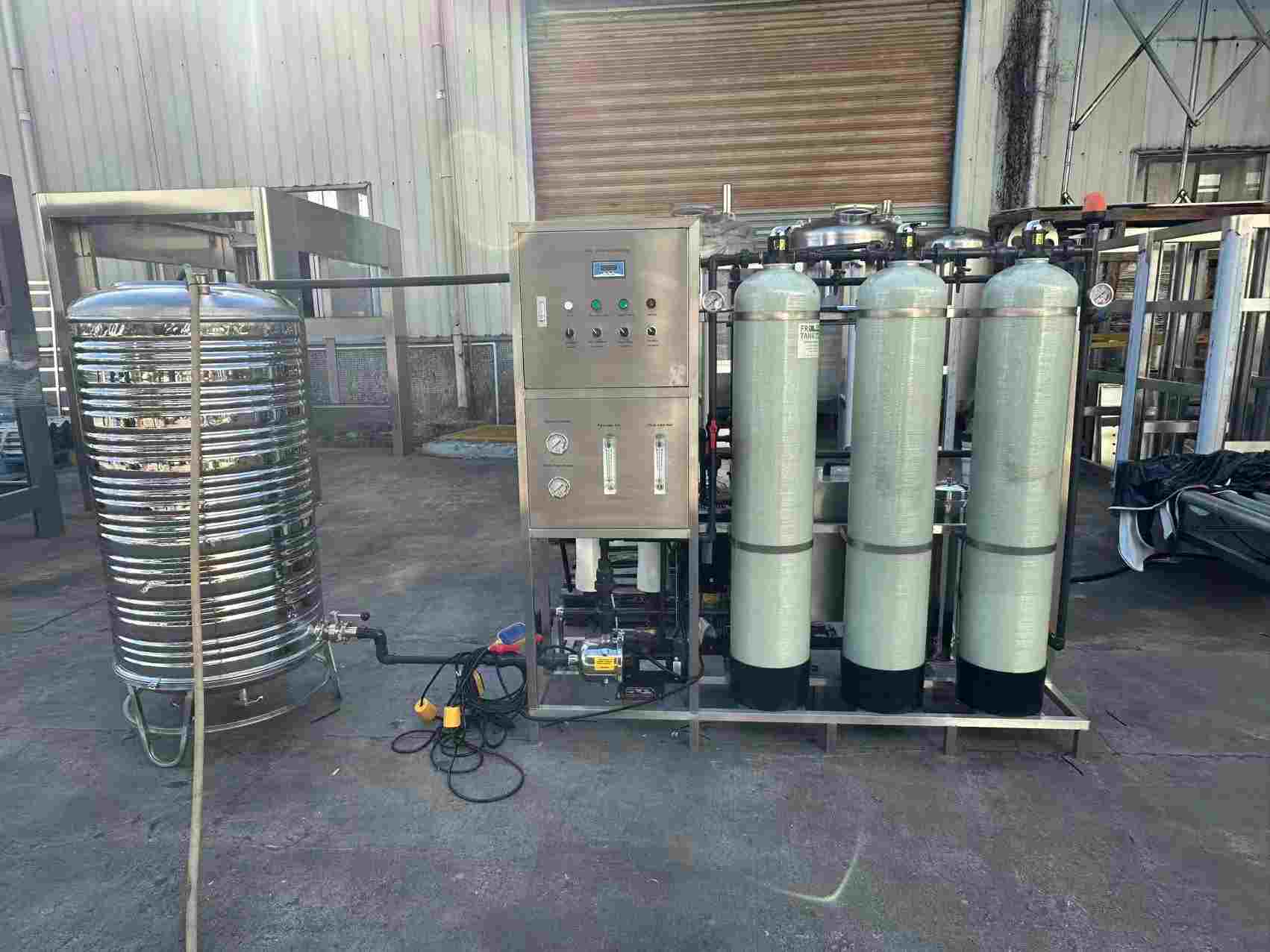

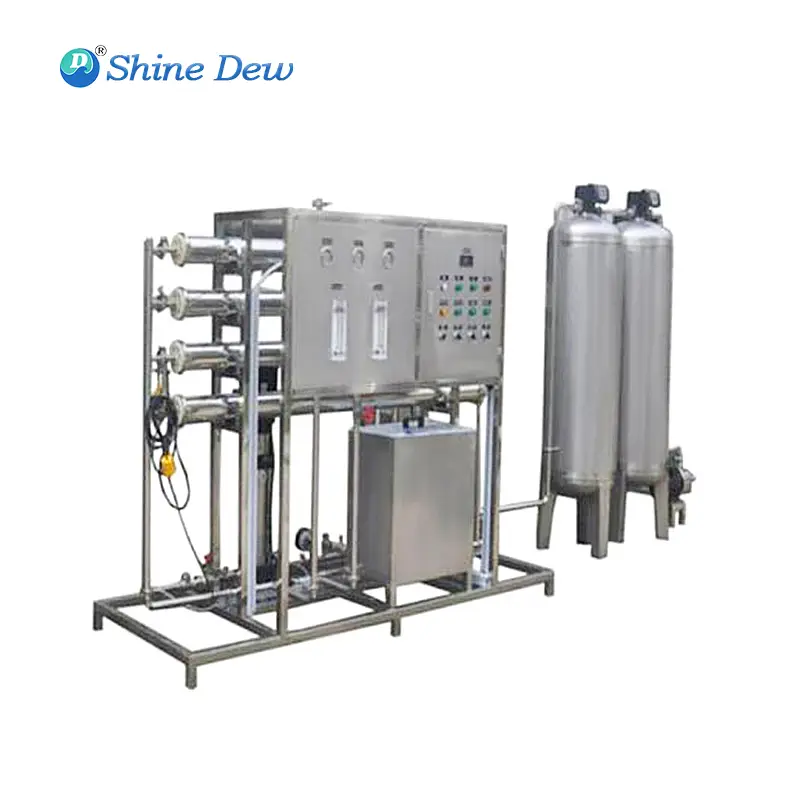

Our 1000 LPH (liters per hour) Reverse Osmosis System is a compact, efficient water purification solution designed for small to medium-scale drinking water production. Ideal for bottled water plants, community water supply, restaurants, hotels, and light industrial applications, this system delivers consistent high-quality purified water with minimal energy consumption and simple operation.
The system integrates multi-stage pre-treatment, two-pass reverse osmosis, and post-treatment options to ensure product water meets the highest drinking water standards. Built with food-grade SS304 stainless steel and premium components, it offers reliability, durability, and ease of maintenance.
Key Features
- Dual Operation Modes
The system supports both automatic and manual operation. In automatic mode, the RO membrane rinsing cycle is triggered automatically, and the system starts/stops based on water level in the storage tank.
- Safety Protection
The system automatically shuts down in the event of short-circuit, current leakage, or abnormal water level – protecting equipment and operators.
- Premium Construction
All water-contact parts are made of food-grade SS304 stainless steel with an open-frame design, ensuring hygiene, easy cleaning, and long-term durability.
- Smart Quality Monitoring
Built-in conductivity meters continuously monitor product water quality, giving you full control over system performance.
- Flexible Customization
Options include stainless steel or FRP storage tanks, different grades of activated carbon and RO membranes, and automatic or manual cleaning modes.
Company Profile
Shine Dew Technology focuses on water, beverage, and packaging equipment projects, covering standalone machines, complete lines, engineering planning, and after-sales coordination. For products such as 5 Gallon ISB molding machines, our team supports solution matching from equipment selection to project delivery, helping customers reduce communication cost across procurement, installation, and production start-up.
We work with customers on equipment selection, line matching, technical communication, and follow-up service, so upstream bottle manufacturing can connect more smoothly with downstream washing, filling, capping, and packaging systems.
Logistics Information
- Standard export packing is prepared according to machine structure and transport safety requirements.
- Shipping method can be arranged by sea, rail, or combined logistics based on destination and delivery schedule.
- We can support shipment documents, loading coordination, and installation preparation before arrival.
Parameter Table
The following specifications can be used to review model configuration, production capacity, and project matching requirements.
|
Production Capacity |
1000 L/h (at 25°C) |
|---|---|
| Power Supply | 220V / 380V, 50Hz |
| Total Power | 3.7 kW |
| Booster Pump | CDL4-30 |
| Sand Filter Vessel | Ø500×H1600 (2 pcs) |
| Softener Vessel | Ø500×H1750 (1 pc) – FRP |
| Control Valve | 280 (1 pc) – Automatic |
| Precision Filter Vessel | 10"×5 (1 pc) – SS304 |
| 1st Pass RO Membranes | BW30HRLE-4040 (3 pcs) |
| 2nd Pass RO Membranes | BW30HRLE-4040 (2 pcs) |
| 1st Pass High-Pressure Pump | CDL4-150 |
| 2nd Pass High-Pressure Pump | CDL4-130 |
| Intermediate Tank (1st–2nd Pass) | 0.5 m³ |
| Quartz Sand | 250 kg |
| Activated Carbon | 100 kg |
| Piping | U-PVC |
|
Machine Dimensions (L×W×H) |
1500 × 550 × 1650 mm |
| Optional Tank Material | SS304 or FRP |
