Product Description

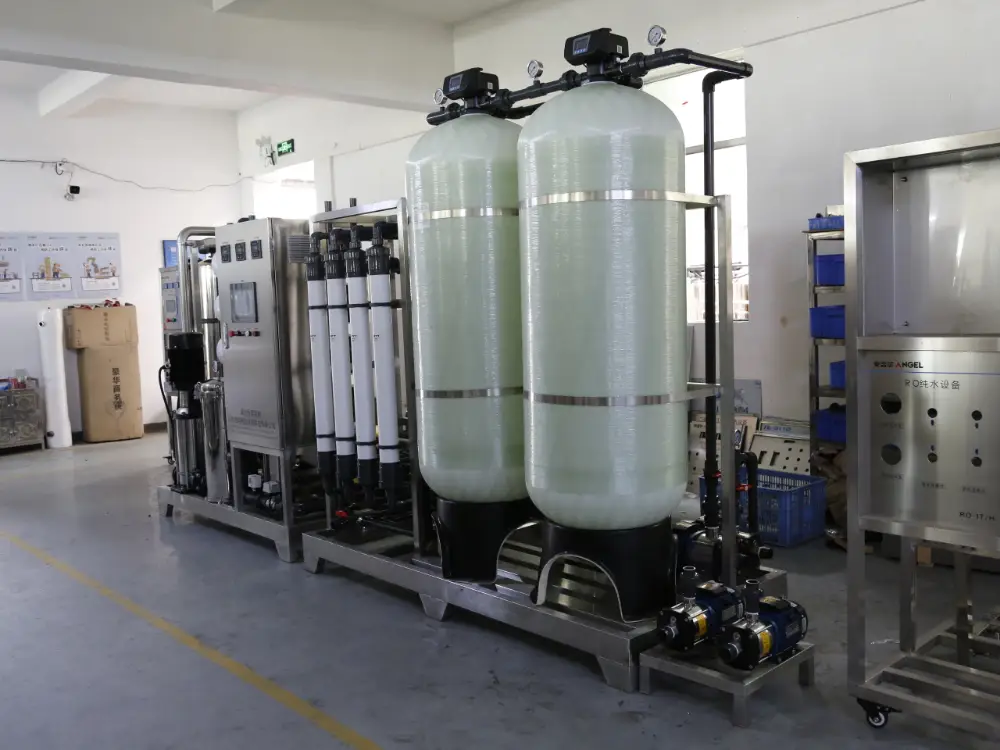

Our 5 T/H Ultrafiltration (UF) System is a high-efficiency membrane filtration solution designed to remove suspended solids, bacteria, viruses, colloids, and large organic molecules from water while preserving essential minerals. Unlike reverse osmosis, UF does not require high pressure or chemicals, making it an energy-saving and environmentally friendly choice for drinking water treatment.
The system features a multi-stage pre-treatment process followed by high-quality TFC (Thin-Film Composite) UF membrane modules, ensuring stable permeate quality and long service life. Constructed with SS304 stainless steel and premium components, this system is ideal for small to medium-scale bottled water plants, community water supply, and commercial applications.This UF system is engineered with an intelligent PLC control system and a user-friendly touchscreen interface, enabling fully automatic or manual operation. It is designed to deliver reliable performance with minimal maintenance and low operating costs, making it an ideal solution for projects where consistent water quality is required.
Key Features
- Food-Grade SS304 Construction
All water-contact parts are made of SS304 stainless steel with an open-frame design, ensuring clear process visibility, excellent hygiene, and convenient maintenance.
- High-Quality TFC UF Membranes
The system uses premium TFC (Thin-Film Composite) UF membrane modules that operate at very low pressure while delivering a high filtration capacity and excellent permeate quality.
- Automatic & Manual Operation
The system supports both automatic and manual operation modes. In automatic mode, it performs auto-rinse cycles and starts/stops based on water level in the storage tank. In manual mode, operators have full control over each process step.
- Smart Conductivity Monitoring
Built-in auto-check conductivity display allows real-time monitoring of water quality, ensuring consistent product water standards at all times.
- Intelligent Circuit Protection
The system features a safe and reliable electrical design with automatic shutdown protection in the event of open circuit, short circuit, or current leakage – safeguarding both equipment and operators.
- Level-Controlled Auto Start/Stop
Intelligent circuit design automatically starts and stops the system based on high or low water levels in the storage tank, preventing overflow or dry running.
- Auto & Manual Membrane Cleaning
The UF membranes can be cleaned in either automatic or manual mode, making maintenance simple and effective while extending membrane service life.
- Flexible Customization
According to your specific requirements, we can adopt FRP (fiberglass) or stainless steel tanks, different brands of pumps and UF membranes, and various electrical components from world-renowned brands such as Schneider Electric, Omron, etc.
Company Profile
Shine Dew Technology focuses on water, beverage, and packaging equipment projects, covering standalone machines, complete lines, engineering planning, and after-sales coordination. For products such as 5 Gallon ISB molding machines, our team supports solution matching from equipment selection to project delivery, helping customers reduce communication cost across procurement, installation, and production start-up.
We work with customers on equipment selection, line matching, technical communication, and follow-up service, so upstream bottle manufacturing can connect more smoothly with downstream washing, filling, capping, and packaging systems.
Suitable Applications
- Bottled water production – mineral water, spring water, and purified water
- Community water supply – residential complexes, housing estates
- Commercial establishments – hotels, restaurants, schools, hospitals
- Food and beverage industry – ingredient water, rinsing, and mixing
- Municipal water treatment – surface water and groundwater polishing
- Industrial process water – cooling water, boiler feed pre-treatment
- Wastewater reuse – tertiary treatment and recycling applications
- Agricultural irrigation – drip irrigation and greenhouse farming
Logistics Information
- Standard export packing is prepared according to machine structure and transport safety requirements.
- Shipping method can be arranged by sea, rail, or combined logistics based on destination and delivery schedule.
- We can support shipment documents, loading coordination, and installation preparation before arrival.
Parameter Table
The following specifications can be used to review model configuration, production capacity, and project matching requirements.
|
Model |
5 T/H UF System |
|---|---|
|
Production Capacity |
5,000 L/h (at 25°C) |
|
Filtration Type |
Ultrafiltration (UF) – TFC membrane |
|
Membrane Pore Size |
0.01 – 0.1 microns |
|
Permeate Quality |
Bacteria & virus removal ≥ 99.99% |
|
Raw Water Requirement |
≤ 5 NTU (turbidity) |
|
Pre-treatment |
Sand filter + Carbon filter + Cartridge filter |
|
Control System |
PLC automatic / manual operation |
|
Power Supply |
220V / 380V, 50/60Hz |
|
Voltage |
As per customer requirement |
|
Construction Material |
SS304 food-grade stainless steel |
|
Piping |
U-PVC or SS304 (optional) |
|
Optional Tank Material |
FRP (fiberglass) or SS304 |
| Dimensions (L×W×H) | Customized based on configuration |
