Product Description

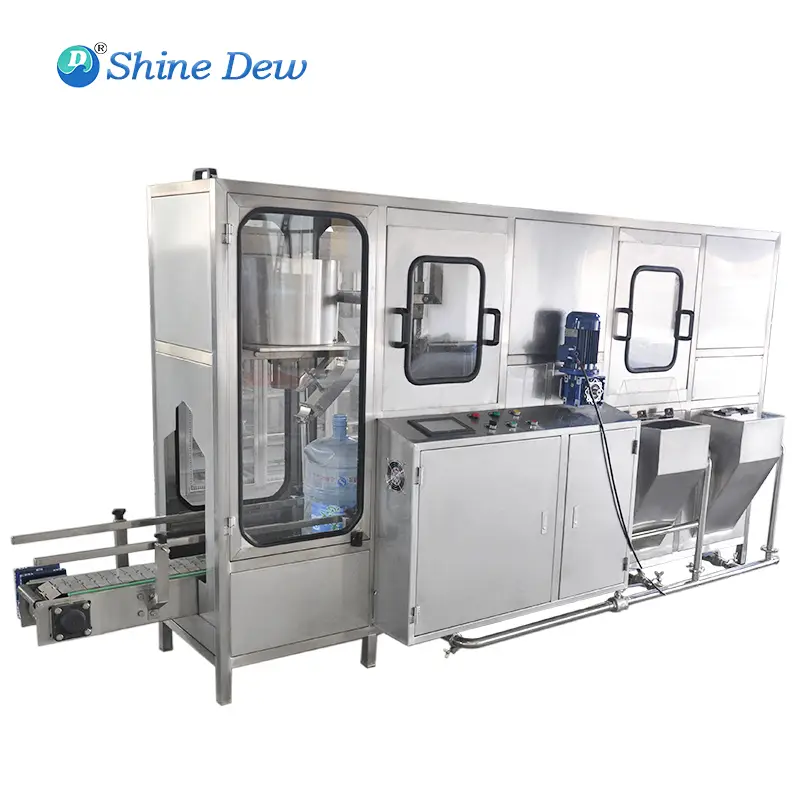

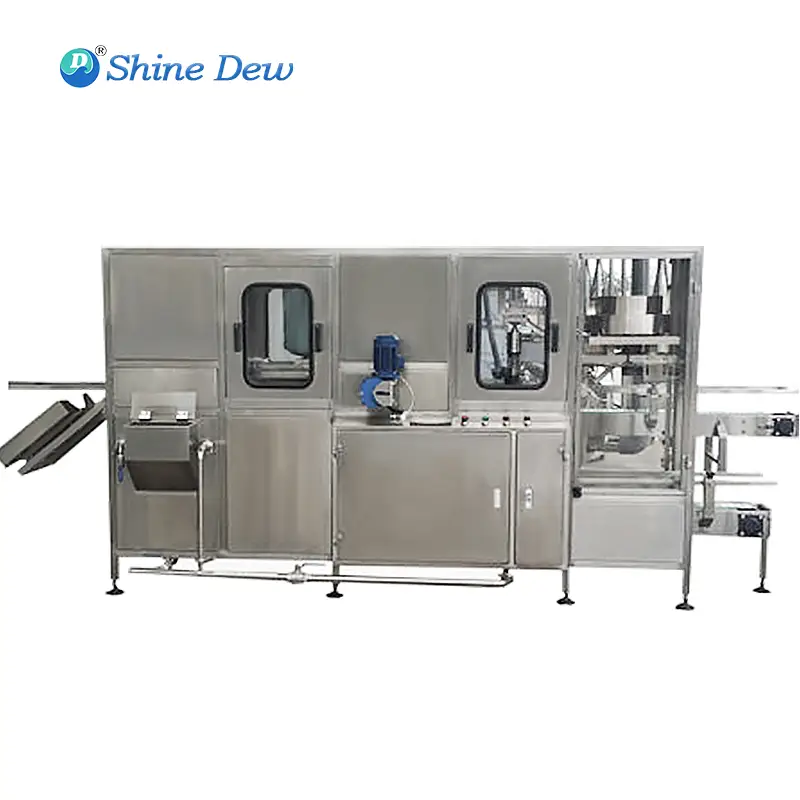

The 150 BPH 5-Gallon Barrel Automatic Filling Machine is a compact, fully integrated solution designed for small to medium-scale bottled water production. This all-in-one system combines decapping, external brushing, internal washing, filling, capping, steam sealing, and lamp checking into a complete production line. With a production capacity of 150 barrels per hour (5-gallon / 18.9L), this machine is ideally suited for startups, small water plants, or facilities with stable daily output requirements.
The machine features a 16-station internal washing system with multi-stage rinsing – including pre-wash, heated caustic wash, recycled water rinse, disinfectant rinse, and final product water rinse. It adopts a non-contact linear filling method with built-in exhaust, which prevents overflow, eliminates reflux water discharge, and avoids barrel expansion – extending barrel service life by up to 40%. The filling section uses SS316L filling valves with self-compensating PTFE seals to ensure precise liquid level control.
Built with food-grade SS304 stainless steel and controlled by a Siemens PLC with a touchscreen HMI, the machine offers reliable, automated operation with minimal manual intervention. Critical pneumatic components are sourced from Airtac, electrical components from Schneider Electric, and the frequency converter from Danfoss – ensuring long-term stability and low maintenance costs.

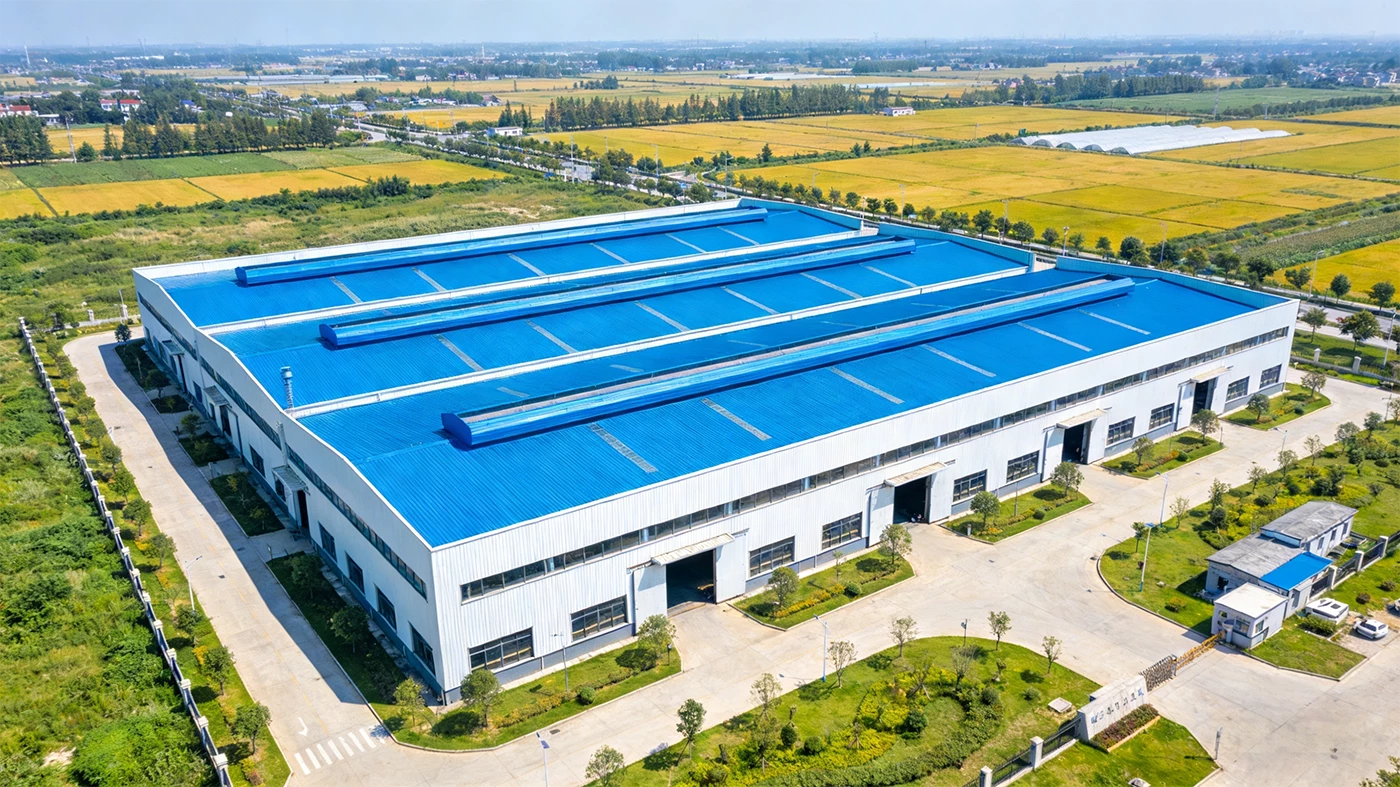

Company Profile
Shine Dew Technology focuses on water, beverage, and packaging equipment projects, covering standalone machines, complete lines, engineering planning, and after-sales coordination. For products such as 5 Gallon ISB molding machines, our team supports solution matching from equipment selection to project delivery, helping customers reduce communication cost across procurement, installation, and production start-up.
We work with customers on equipment selection, line matching, technical communication, and follow-up service, so upstream bottle manufacturing can connect more smoothly with downstream washing, filling, capping, and packaging systems.
Applications
- Small to medium-scale bottled water plants
- 5-gallon (18.9L) barrel water production
- Mineral water and purified water bottling
- Spring water packaging
- Community water supply stations
- Home and office delivery (HOD) water services
Logistics Information
- Standard export packing is prepared according to machine structure and transport safety requirements.
- Shipping method can be arranged by sea, rail, or combined logistics based on destination and delivery schedule.
- We can support shipment documents, loading coordination, and installation preparation before arrival.
Parameter Table
The following specifications can be used to review model configuration, production capacity, and project matching requirements.
|
Production Capacity |
150 BPH (5-gallon / 18.9L barrels) |
|---|---|
|
Bottle Volume |
5 gallons (18.9L) |
|
Bottle Material |
PC (recommended) |
|
Bottle Specifications |
Φ270×490×Φ56 mm |
|
Filling Method |
Non-contact, linear type with built-in exhaust |
|
Filling Heads |
4 heads |
|
Washing Stations |
16 stations |
|
Washing Method |
Recurrent washing with recycling |
|
Filling Temperature |
Normal temperature |
|
Control System |
Siemens PLC with touchscreen HMI |
|
Power Supply |
3-phase, 220/380V ±10%, 50/60Hz ±1% |
|
Total Power |
Approx. 25 kW |
|
Air Consumption |
0.5 m³/min at 0.6–0.8 MPa |
|
Machine Dimensions (Washing Section) |
6,400 × 1,500 × 2,100 mm |
|
Machine Dimensions (Filling Section) |
1,500 × 800 × 2,100 mm |
|
Ambient Temperature |
10–40°C |
| Ambient Humidity | ≤ 95% (non-condensing) |
FAQ
Q1: Can you provide more information about this product, and quote the best price?
A: Sure, please contact us via any methods showed on this page, and we will send our product catalog, company profile for your reference.What's more, we will customize detailed offer according to your specific requirements.
Q2: The price is a little higher than my budget. Can you offer a better price?
A: The first proposal is preliminary design, as a professional buyer; pls don't only focus on the price. If you have any question or request, pls don't hesitate to contact us. Then we will adjust the configuration and quality according to your request. Your feedback will lead us to make the proposal to match your request.
Q3: What else need to be paid attention besides price?
A: except for the price, we also need pay attention to quality, product construction, design principle, configuration of part list, reasonability, convenience of operation, professional, service and etc.
Q4: Can you provide turnkey project service?
A: Yes, of course, we can provide the full set of turnkey project service to you.
Q5: How long of your warranty?
A: Regarding warranty, normally we offer 1 year warranty/3000 hours warranty, and we also offer lifetime maintenance.
Q6. Do you accept OEM order?
A: Yes, we have strong design team and technical team. Therefore we can also accept OEM and customized order with special requirements.
